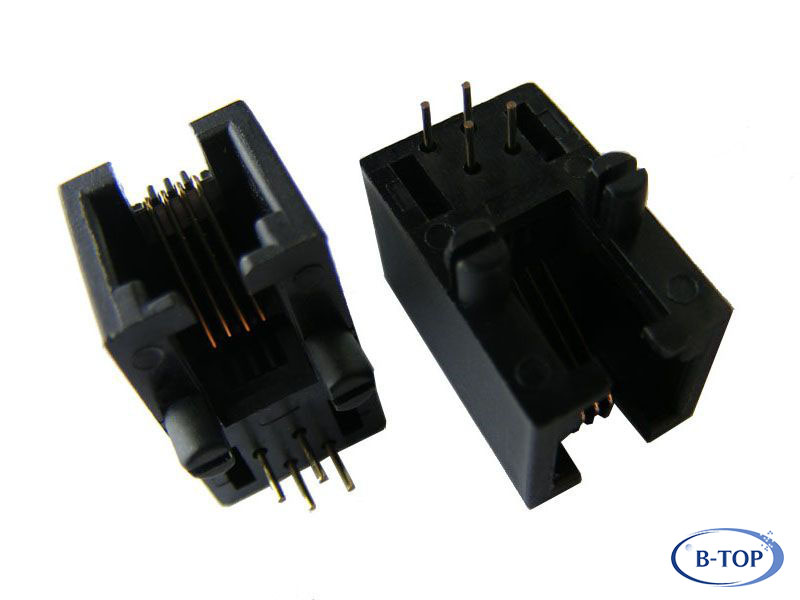

1X1 4P4C RJ45 Connector without Shield

2013-07-12 10:52:46
1X1 4P4C RJ45 Connector without Shield 1X1 4P4C RJ45 Connector without Shield

Product Details:

Place of OriginGuangdong, China (Mainland)Part NumberB53(06)W-A001-C52
Brand NameB-TOPTypeDIP/SIDE ENTRY
ApplicationPCBGenderFemale
Port1x1LEDN/A

Detailed Product Description:

1X1 4P4C RJ45 Jack without shield.

Meet or exceeds IEEE802.3 standard. Comply with RoHS.

Main use:

  • Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...
  • PC motherboard
  • Notebook

Spectifications:

Electrical   Mechanical
Current rating: 1 - 1.5A Insertion force: 2 contacts---350g
Voltage rating: 120 - 150V AC   4 contacts---500g
Insulation resistance: 500MΩ Min   6 contacts---750g
Withstand voltage: 1500V RMS 50Hz or 60Hz 1 Min   8 contacts---900g
Contact resistance: 20mΩ Max   10 contacts---1050g
PoE rating: 15W, 350mA, 84V (For PoE product only) Retention strength: 7.7Kg between jack and plug
    Durability: 750 mating cycles min
Material
Housing: 1) glass filled PA66(ul 94v-0)
  2) glass filled PA46/LCP(ul 94v-0)
  3) glass filled PBT(ul 94v-0)
Spring wire: 1) 0.45mm dia phosphor bronze gold plating over nickel
  2) 0.35mm thickness phosphor bronze alloy
  selective gold plating over nickel
Shielding: 0.2mm thickness copper alloy with tin plated
Gold plating: 3μ″,6μ″,15,μ″,30μ″,50μ″
Working temperature: -40°C-70°C
Relative humidity: 70%±10% RH
