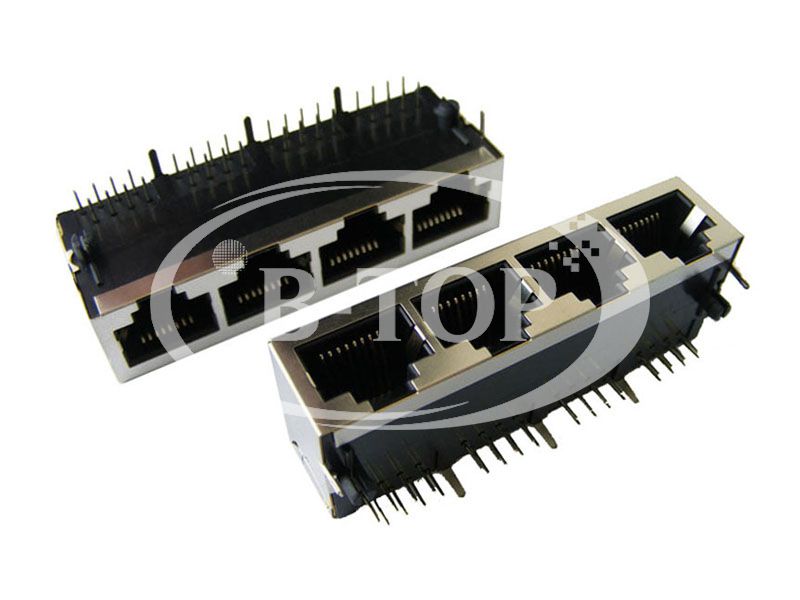

1x4 Harmonica 8P8C RJ45 Jack without LED

Product Details:

Place of Origin	Guangdong, China (Mainland)	Part Number	B59(02-03)W-C011-F12
Brand Name	B-TOP	Type	DIP/SIDE ENTRY
Application	PCB	Gender	Female
Port	1x4	LED	N/A

Detailed Product Description:

1x4 Harmonica 8P8C RJ45 Jack without LED, Meet or exceeds IEEE802.3 standard.

Main use:

• Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge...

Spectifications:

Electrical		Mechanical
Current rating:	1 - 1.5A	Insertion force:	2 contacts---350g
Voltage rating:	120 - 150V AC		4 contacts---500g
Insulation resistance:	500MΩ Min		6 contacts---750g
Withstand voltage:	1500V RMS 50Hz or 60Hz 1 Min		8 contacts---900g
Contact resistance:	20mΩ Max		10 contacts---1050g
PoE rating:	15W, 350mA, 84V (For PoE product only)	Retention strength:	7.7Kg between jack and plug
		Durability:	750 mating cycles min
Material
Housing:	1) glass filled PA66(ul 94v-0)
	2) glass filled PA46/LCP(ul 94v-0)
	3) glass filled PBT(ul 94v-0)
Spring wire:	1) 0.45mm dia phosphor bronze gold plating over nickel
	2) 0.35mm thickness phosphor bronze alloy
	selective gold plating over nickel
Shielding:	0.2mm thickness copper alloy with tin plated
Gold plating:	3μ″,6μ″,15μ″,30μ″,50μ″
Working temperature:	-40°C-70°C, -45°C-80°C
Relative humidity:	70%±10% RH

Electrical Specifications at 25°C

Insertion Loss dB max	Return Loss dB min			Crosstalk(dB TYP)			Common Mode Rejection (dB TYP)		Hipot(Vrms)
1-100MHz	1-30MHz	30-60MHz	60-80MHz	1-30MHz	30-60MHz	60-80MHz	1-50MHz	50-150MHz
-1.0	-18	-16	-12	-40	-35	-30	-30	-20	1500
