2X4 Gigabit RJ45 Female Connector with Gigabit Transformer

Product Details:

Place of Origin	Guangdong, China (Mainland)	Part Number	B59(105-08)G8-28-4023-C12
Brand Name	B-TOP	Type	RJ45
Application	PCB	Gender	Female
Port	2x4	LED	N/A

Detailed Product Description:

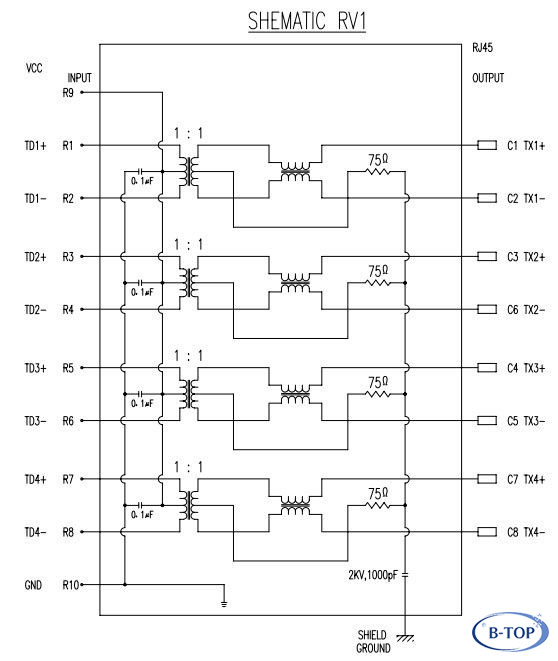

2X4 Gigabit RJ45 female connector, 1000base-tx transformer filter, with EMI fingers, w/o LEDs.

Meet or exceeds IEEE802.3 standard

Main use:

Network Equipment: Modem, Hub, Switch, Router, Gateway, Firewall, Repeater, Bridge…

More 2x4 Magnetic RJ45 Jack

View the full list of 2xN Stacked Magnetic RJ45 Jack Connector on the new website.

Part Number	Mech Drawing	Speed	Schematic	PoE	LEDs	EMI Spring	Gold Plating	Temperature
B59(117-07)F4-41-4012-C12	A	100M	F4-41		None	No	6u"	0 - 70
B59(117-09)FP4-203-4022-C12	A	100M	FP4-203	PoE	None	Yes	6u"	0 - 70
B59(117-11)FP4-162-4026-C12	A	100M	FP4-162	PoE	None	Yes	50u"	0 - 70
B59(119-01)FP4-237-4125-C12	A	100M	FP4-237	PoE	Y/G	Yes	30u"	0 - 70
B59(119-02)FP4-238-4125-C12	A	100M	FP4-238	PoE	Y/G	Yes	30u"	0 - 70
B59(119-03)FP4-242-4123-C12	A	100M	FP4-242	PoE	Y/G	Yes	6u"	0 - 70
B59(119-05)FP4-242A-4125-C12	A	100M	FP4-242A	PoE	Y/G	Yes	30u"	0 - 70
B59(119-06)FP4-283-4123-C12	A	100M	FP4-283	PoE	Y/G	Yes	6u"	0 - 70
B59(123)F4-156-4222-C12	A	100M	F4-156		G/Y	Yes	6u"	0 - 70
B59(123-01)F4-156-4622-C12	A	100M	F4-156		GO/GO	Yes	6u"	0 - 70
B59(123-02)F4-42A-4222-C12	A	100M	F4-42A		G/Y	Yes	6u"	0 - 70
B59(123-03)F4-156-4623-C12	A	100M	F4-156		GY/GY	Yes	6u"	0 - 70
B59(123-12)F4-48-4222-C12	A	100M	F4-48		G/Y	Yes	6u"	0 - 70
B59(123-13)FP4-162-4222-C12	A	100M	FP4-162	PoE	G/Y	Yes	6u"	0 - 70
B59(123-17)F4-134-4222-C12	A	100M	F4-134		G/Y	Yes	6u"	0 - 70
B59(123-18)F4-156-4122-C12	A	100M	F4-156		Y/G	Yes	6u"	0 - 70
B59(123-20)F4-136-4113-C12	A	100M	F4-136		Y/G	No	6u"	0 - 70
B59(123-21)F4-136-4113-C12	A	100M	F4-136		Y/G	No	6u"	0 - 70
B59(123-22)F4-136-4213-C12	A	100M	F4-136		G/Y	No	6u"	0 - 70
B59(123-23)F4-177-4612-C12	A	100M	F4-177		GY/YG	No	6u"	0 - 70
B59(123-25)F4-111-4222-C12	A	100M	F4-111		G/Y	Yes	6u"	0 - 70
B59(123-26)PF4-178-4623-C12	A	100M	PF4-178	PoE	YG/YG	Yes	6u"	0 - 70
B59(123-29)F4-136-4213-C12	A	100M	F4-136		G/Y	No	6u"	0 - 70
B59(123-33)PF4-236B-4125-C92	A	100M	PF4-236B	PoE	Y/G	Yes	30u"	0 - 70
B59(123-34)FP4-241-4223-C12	A	100M	FP4-241	PoE	G/Y	Yes	6u"	0 - 70
B59(123-35)F4-156-4223-C12	A	100M	F4-156		G/Y	Yes	6u"	0 - 70
B59(123-37)F4-134-4323-C12	A	100M	F4-134		G/Y	Yes	6u"	0 - 70
B59(123-39)F4-48-4223-C12	A	100M	F4-48		G/Y	Yes	6u"	0 - 70
B59(123-40)PF4-162-4223-C92	A	100M	PF4-162	PoE	G/Y	Yes	6u"	0 - 70
B59(123-42)F4-03A-4222-C12	A	100M	F4-03A		G/Y	Yes	6u"	0 - 70
B59(123-43)PF4-178-4223-C12	A	100M	PF4-178	PoE	G/Y	Yes	6u"	0 - 70
B59(123-44)FP4-162-4323-C12	A	100M	FP4-162	PoE	G/G	Yes	6u"	0 - 70
B60(115-04)F4-02-4722-C12	B	100M	F4-02		G/Y	Yes	6u"	0 - 70
B60(115-06)F4-189-4022-C12	B	100M	F4-189		None	Yes	6u"	0 - 70
B60(115-07)F4-02-4022-C12	B	100M	F4-02		None	Yes	6u"	0 - 70
B60(115-08)F4-03A-4022-C12	B	100M	F4-03A		None	Yes	6u"	0 - 70
B60(115-16)F4-200-4723-C12	B	100M	F4-200		G/Y	Yes	6u"	0 - 70
B60(115-17)F4-211-4022-C12	B	100M	F4-211		None	Yes	6u"	0 - 70
B60(115-18)F5-83-4022-C12	B	100M	F5-83		None	Yes	6u"	0 - 70
B60(115-19)PF6-230-4023-C12	B	100M	PF6-230	PoE	None	Yes	6u"	0 - 70
B60(115-20)F4-02-4723-C12	B	100M	F4-02		G/Y	Yes	6u"	0 - 70
B60(115-26)F4-273-4022-C12	B	100M	F4-273		None	Yes	6u"	0 - 70
B60(115-27)F5-86-4022-C12	B	100M	F5-86		None	Yes	6u"	0 - 70
B59(115-02)F4-161-4622-C12	C	100M	F4-161		GY/G	Yes	6u"	0 - 70
B59(103-06)G8-10-4723-C12	B	Gigabit	G8-10		G/Y	Yes	6u"	0 - 70
B59(103-07)G8-10-4725-C12	B	Gigabit	G8-10		G/O	Yes	30u"	0 - 70
B59(103-08)G8-56A-4723-C12	B	Gigabit	G8-56A		G/Y	Yes	6u"	0 - 70
B59(105-08)G8-28-4023-C12	A	Gigabit	G8-28		None	Yes	6u"	0 - 70
B59(105-12)G8-101-4023-C12	A	Gigabit	G8-101		None	Yes	6u"	0 - 70
B59(105-15)G8-46-4013-C12	A	Gigabit	G8-46		None	Yes	6u"	0 - 70
B59(105-17)G8-10E-4025-C12	A	Gigabit	G8-10E		None	Yes	30u"	0 - 70
B59(105-18)G8-56A-4023-C12	A	Gigabit	G8-56A		None	Yes	6u"	0 - 70
B59(105-22)G8-09-4023-C12	A	Gigabit	G8-09		None	Yes	6u"	0 - 70
B59(105-23)G8-117-4023-C12	A	Gigabit	G8-117		None	Yes	6u"	0 - 70
B59(111)G8-28-4625-C12	A	Gigabit	G8-28		GY/GO	Yes	30u"	0 - 70
B59(111-03)G8-101-4223-C12	A	Gigabit	G8-101		G/Y	Yes	6u"	0 - 70
B59(111-09)G8-28-4623-C12	A	Gigabit	G8-28		G/YG	Yes	6u"	0 - 70
B59(111-10)G8-28-4613-C12	A	Gigabit	G8-28		G/YG	No	6u"	0 - 70
B59(111-11)G8-09-4223-C12	A	Gigabit	G8-09		G/Y	Yes	6u"	0 - 70
B59(111-15)G8-10-4625-C12	A	Gigabit	G8-10		GO/GO	Yes	30u"	0 - 70
B59(111-16)G8-28B-4623-C12	A	Gigabit	G8-28B		GO/GO	Yes	6u"	-40 - 85
B59(111-19)G8-28-4623-C12	A	Gigabit	G8-28		GO/GO	Yes	6u"	0 - 70
B59(111-22)G8-28-4223-C12	A	Gigabit	G8-28		G/Y	Yes	6u"	0 - 70
B59(111-26)G8-60-4223-C12	A	Gigabit	G8-60		G/Y	Yes	6u"	0 - 70
B59(111-27)G8-09-4623-C12	A	Gigabit	G8-09		YG/YG	Yes	6u"	0 - 70
B59(111-29)G8-60-4623-C12	A	Gigabit	G8-60		G/GY	Yes	6u"	0 - 70
B59(111-30)G8-60-4623-C12	A	Gigabit	G8-60		YG/YG	Yes	6u"	0 - 70
B59(111-31)G8-60-4625-C12	A	Gigabit	G8-60		YG/YG	Yes	6u"	0 - 70
B59(111-32)G8-28-4223-C12	A	Gigabit	G8-28		G/Y	Yes	6u"	0 - 70
B59(111-34)G8-60-4613-C12	A	Gigabit	G8-60		GY/GY	No	6u"	0 - 70
B59(111-35)G8-100-4623-C12	A	Gigabit	G8-100		GY/GY	Yes	6u"	0 - 70
B59(111-37)G8-60-4623-C12	A	Gigabit	G8-60		GO/Y	Yes	6u"	0 - 70
B59(111-38)G8-10A-4623-C12	A	Gigabit	G8-10A		GY/GY	Yes	6u"	0 - 70
B59(111-39)G8-60-4623-C12	A	Gigabit	G8-60		GY/GY	Yes	6u"	0 - 70
B59(111-40)G8-60-4623-C12	A	Gigabit	G8-60		GY/GY	Yes	6u"	0 - 70
B59(111-41)G8-60-4623-C12	A	Gigabit	G8-60		GO/GO	Yes	6u"	0 - 70
B59(111-42)G8-28-4213-C12	A	Gigabit	G8-28		G/Y	No	6u"	0 - 70
B59(111-43)G8-09-4123-C12	A	Gigabit	G8-09		Y/G	Yes	6u"	0 - 70
B59(111-46)G8-60-4224-C12	A	Gigabit	G8-60		G/Y	Yes	15u"	0 - 70
B59(111-47)G8-28B-4123-C12	A	Gigabit	G8-28B		Y/G	Yes	6u"	-40 - 85
B59(111-49)G8-28-4123-C12	A	Gigabit	G8-28		Y/G	Yes	6u"	0 - 70
B59(111-51)G8-150-4623-C12	A	Gigabit	G8-150		G/GY	Yes	6u"	0 - 70
B59(111-53)G8-60-4623-C12	A	Gigabit	G8-60		Y/GO	Yes	6u"	0 - 70
B59(111-55)G8-10A-4625-C12	A	Gigabit	G8-10A		G/GY	Yes	30u"	0 - 70
B59(111-56)G8-101-4623-C12	A	Gigabit	G8-101		GY/GY	Yes	6u"	0 - 70
B59(111-59)G8-28-4223-C12	A	Gigabit	G8-28		G/Y	Yes	6u"	0 - 70
B59(111-61)G8-56A-4623-C12	A	Gigabit	G8-56A		GO/GO	Yes	6u"	0 - 70
B59(111-62)G8-28-4113-C12	A	Gigabit	G8-28		Y/G	No	6u"	0 - 70
B59(111-64)G8-10E-4625-C12	A	Gigabit	G8-10E		GY/GY	Yes	30u"	0 - 70
B59(111-67)G8-10G-4625-C12	A	Gigabit	G8-10G		GY/Y	Yes	30u"	0 - 70
B59(111-68)G8-09B-4223-C12	A	Gigabit	G8-09B		G/Y	Yes	6u"	-40 - 85
B59(111-69)G8-60-4323-C12	A	Gigabit	G8-60		G/G	Yes	6u"	0 - 70
B59(111-70)G8-28F-4225-C12	A	Gigabit	G8-28F		G/Y	Yes	30u"	0 - 70
B59(111-72)G8-28G-4223-C12	A	Gigabit	G8-28G		G/Y	Yes	6u"	0 - 70
B59(111-73)G8-172-4623-C12	A	Gigabit	G8-172		G/GY	Yes	6u"	0 - 70
B59(111-75)G8-10G-4623-C12	A	Gigabit	G8-10G		GY/Y	Yes	6u"	0 - 70
B59(111-81)G8-28-4623-C12	A	Gigabit	G8-28		GO/GO	Yes	6u"	0 - 70
B59(111-83)G8-60B-4623-C12	A	Gigabit	G8-60B		YG/GY	Yes	6u"	-40 - 85
B59(111-87)G8-188-4623-C12	A	Gigabit	G8-188		GY/G	Yes	6u"	-40 - 85
B59(111-88)G8-101C-4623-C12	A	Gigabit	G8-101C		GY/GY	Yes	6u"	0 - 70
B59(111-89)G8-60-4213-C12	A	Gigabit	G8-60		G/Y	No	6u"	0 - 70
B59(111-90)G8-100-4625-C12	A	Gigabit	G8-100		GY/GY	Yes	30u"	0 - 70
B59(111-91)G8-28B-4223-C12	A	Gigabit	G8-28B		G/Y	Yes	6u"	-40 - 85
B59(111-92)G8-28-4213-C12	A	Gigabit	G8-28		G/Y	No	6u"	0 - 70
B59(111-93)G8-178-4723-C12	A	Gigabit	G8-178		YG/GY	Yes	6u"	0 - 70
B59(111-94)G8-10D-4213-C12	A	Gigabit	G8-10D		G/Y	No	6u"	0 - 70
B59(111-97)G8-60B-4623-C12	A	Gigabit	G8-60B		GY/Y	Yes	6u"	-40 - 85
B59(111-98)G8-60B-4623-C12	A	Gigabit	G8-60B		GY/GY	Yes	6u"	-40 - 85
B59(111-100)G8-60-4333-C12	A	Gigabit	G8-60		G/G	Yes	6u"	0 - 70
B59(112-06)G8-56-4623-C12	C	Gigabit	G8-56		G/GY	Yes	6u"	0 - 70
B59(112-07)G8-56-4623-C12	C	Gigabit	G8-56		G/GY	Yes	6u"	0 - 70
B59(112-08)G8-56A-4624-C12	C	Gigabit	G8-56A		G/GY	Yes	30u"	0 - 70
B59(112-09)G8-56A-4223-C12	C	Gigabit	G8-56A		G/G	Yes	6u"	0 - 70
B59(112-11)G8-10A-4323-C12	C	Gigabit	G8-10A		G/G	Yes	6u"	0 - 70
B59(112-13)G8-56F-4223-C12	C	Gigabit	G8-56F		G/Y	Yes	6u"	0 - 70
B59(112-15)G8-56A-4625-C12	C	Gigabit	G8-56A		GO/GO	Yes	30u"	0 - 70
B59(112-18)G8-56F-4223-C12	C	Gigabit	G8-56F		G/Y	Yes	6u"	0 - 70
B59(112-19)G8-56F-4624-C12	C	Gigabit	G8-56F		GO/GO	Yes	15u"	0 - 70
B59(112-20)G8-56F-4225-C12	C	Gigabit	G8-56F		G/Y	Yes	30u"	0 - 70
B59(112-21)G8-56G-4225-C12	C	Gigabit	G8-56G		G/Y	Yes	30u"	0 - 70
B59(112-23)G8-10A-4223-C12	C	Gigabit	G8-10A		G/Y	Yes	6u"	0 - 70
B59(112-25)G8-56G-4325-C12	C	Gigabit	G8-56G		G/G	Yes	30u"	0 - 70
B59(112-28)G8-56G-4225-C12	C	Gigabit	G8-56G		G/Y	Yes	30u"	0 - 70
B59(112-30)G8-56G-4325-C12	C	Gigabit	G8-56G		G/G	Yes	30u"	0 - 70
B59(112-30)G8-56G-4325-C12	C	Gigabit	G8-56G		G/G	Yes	30u"	0 - 70
B59(112-32)GP8-220-4623-C12	D2	Gigabit	GP8-220	PoE	YG/YG	Yes	6u"	0 - 70
B59(112-33)GP8-160-4223-C12	D2	Gigabit	GP8-160	PoE	G/Y	Yes	6u"	0 - 70
B59(112-35)G8-230-4113-C12	C	Gigabit	G8-230		Y/G	No	6u"	0 - 70
B59(112-36)G8-231-4225-C12	C	Gigabit	G8-231		G/Y	Yes	30u"	-40 - 85
B59(112-37)G8-10A-4225-C12	C	Gigabit	G8-10A		G/Y	Yes	30u"	-40 - 85
B59(118-03)GP8-19A-4223-C12	D1	Gigabit	GP8-19A	PoE	G/Y	Yes	6u"	0 - 70
B59(118-05)GP8-19A-4023-C12	D1	Gigabit	GP8-19A	PoE	None	Yes	6u"	0 - 70
B59(118-11)GP8-103F-4023-C12	D1	Gigabit	GP8-103F	PoE	None	Yes	6u"	0 - 70
B59(118-15)GP8-103F-4623-C12	D2	Gigabit	GP8-103F	PoE	YG/YG	Yes	6u"	0 - 70
B59(118-43)GP8-139-4223-C12	D1	Gigabit	GP8-139	PoE	G/Y	Yes	6u"	0 - 70
B59(118-49)GP8-109-4725-C12	D3	Gigabit	GP8-109	PoE	GO/GO	Yes	30u"	0 - 70
B59(118-50)GP8-153-4625-C12	D2	Gigabit	GP8-153	PoE	GY/GY	Yes	30u"	0 - 70
B59(118-53)GP8-19B-4725-C12	D3	Gigabit	GP8-19B	PoE+	GO/GO	Yes	30u"	-40 - 85
B59(118-55)GP8-19E-4624-C12	D2	Gigabit	GP8-19E	PoE+	OG/OG	Yes	15u"	0 - 70
B59(118-56)GP8-19E-4623-C92	D2	Gigabit	GP8-19E	PoE	OG/OG	Yes	6u"	0 - 70
B59(118-57)GP8-19G-4725-C12	D3	Gigabit	GP8-19G	PoE	GO/GO	Yes	30u"	0 - 70
B59(118-58)GP8-19B-4623-C12	D1	Gigabit	GP8-19B+	PoE+	GO/GO	Yes	6u"	-40 - 85
B59(118-59)GP8-109B-4725-C12	D3	Gigabit	GP8-109B	PoE	GO/GO	Yes	30u"	-40 - 85
B59(118-67)GP8-161A-4323-C12	D2	Gigabit	GP8-161A	PoE+	G/G	Yes	6u"	0 - 70
B59(118-70)GP8-153-4625-C12	D2	Gigabit	G8-153	PoE	GO/GO	Yes	30u“	0 - 70
B59(118-71)GP8-161A-4224-C12	D2	Gigabit	GP8-161A	PoE+	G/Y	Yes	15u"	0 - 70
B59(118-72)GP8-19G-4725-C12	D3	Gigabit	GP8-19G	PoE	G/Y	Yes	30u"	0 - 70
B59(118-74)GP8-103F-4223-C12	D2	Gigabit	GP8-103F	PoE	G/Y	Yes	6u"	0 - 70
B59(118-76)GP8-19J-4225-C12	D2	Gigabit	GP8-19J	PoE	G/Y	Yes	30u"	0 - 70
B59(118-77)GP8-19B-4223-C12	D2	Gigabit	GP8-19B	PoE+	G/Y	Yes	6u"	-40 - 85
B59(118-78)GP8-19B-4623-C12	D2	Gigabit	GP8-19B	PoE+	OG/OG	Yes	6u"	-40 - 85
B59(118-79)GP8-139A-4223-C12	D1	Gigabit	GP8-139A	PoE+	G/Y	Yes	6u"	0 - 70
B59(118-82)GP8-139-4623-C12	D1	Gigabit	GP8-139	PoE	G/GO	Yes	6u"	0 - 70
B59(118-83)GP8-19A-4623-C12	D1	Gigabit	GP8-19A	PoE	G/GO	Yes	6u"	0 - 70
B59(118-92)GP8-209-4723-C12	D3	Gigabit	GP8-209	PoE	GO/GO	Yes	6u"	0 - 70
B59(118-93)GP8-19K-4023-C12	D1	Gigabit	GP8-19K	PoE	None	Yes	6u"	0 - 70
B59(118-95)GP8-67B-4123-C12	D1	Gigabit	GP8-67B	PoE	Y/G	Yes	6u"	-40 - 85
B59(118-96)GP8-139A-4223-C12	D1	Gigabit	GP8-139A	PoE+	G/Y	Yes	6u"	0 - 70
B59(118-97)GP8-70-4323-C12	D1	Gigabit	GP8-70	PoE	G/G	Yes	6u"	0 - 70
B59(118-98)GP8-103I-4323-C12	D2	Gigabit	GP8-103I	PoE	G/G	Yes	6u"	0 - 70
B59(118-99)GP8-215-4123-C12	D1	Gigabit	GP8-215	PoE	Y/G	Yes	6u"	0 - 70
B59(118-100)GP8-216-4123-C12	D1	Gigabit	GP8-216	PoE	Y/G	Yes	6u"	0 - 70
B59(118-101)GP8-103I-4123-C12	D2	Gigabit	GP8-103I	PoE	Y/G	Yes	6u"	0 - 70
B59(118-102)GP8-222-4126-C12	D2	Gigabit	GP8-222	PoE	Y/G	Yes	50u"	0 - 70
B59(118-103)GP8-19H-4223-C12	D2	Gigabit	GP8-19H	PoE	G/Y	Yes	6u"	0 - 70
B59(118-104)GP8-232-4013-C12	D1	Gigabit	GP8-232	PoE	None	Yes	6u"	0 - 70
B59(118-105)GP8-237-4223-C12	D2	Gigabit	GP8-237	PoE	G/Y	Yes	6u"	0 - 70
B59(118-108)GP8-153-4323-C12	D2	Gigabit	GP8-153	PoE	G/G	Yes	6u"	0 - 70
B59(118-109)GP8-19N-4623-C12	D2	Gigabit	GP8-19N	PoE	O/G	Yes	6u"	0 - 70
B59(118-110)GP8-67D-4123-C12	D1	Gigabit	GP8-67D	PoE	Y/G	Yes	6u"	0 - 70
B59(118-111)GP8-239-4123-C12	D1	Gigabit	GP8-239	PoE	Y/G	Yes	6u"	0 - 70
B59(118-112)GP8-188-4623-C12	D1	Gigabit	GP8-188	PoE	GY/G	Yes	6u"	0 - 70
B59(118-113)GP8-139B-4623-C12	D1	Gigabit	GP8-139B	PoE	G/GO	Yes	6u"	-40 - 85

Spectifications:

Electrical		Mechanical
Current rating:	1 - 1.5A	Insertion force:	2 contacts---350g
Voltage rating:	120 - 150V AC		4 contacts---500g
Insulation resistance:	500MΩ Min		6 contacts---750g
Withstand voltage:	1500V RMS 50Hz or 60Hz 1 Min		8 contacts---900g
Contact resistance:	20mΩ Max		10 contacts---1050g
PoE rating:	15W, 350mA, 84V (For PoE product only)	Retention strength:	7.7Kg between jack and plug
		Durability:	750 mating cycles min
Material
Housing:	1) glass filled PA66(ul 94v-0)
	2) glass filled PA46/LCP(ul 94v-0)
	3) glass filled PBT(ul 94v-0)
Spring wire:	1) 0.45mm dia phosphor bronze gold plating over nickel
	2) 0.35mm thickness phosphor bronze alloy
	selective gold plating over nickel
Shielding:	0.2mm thickness copper alloy with tin plated
Gold plating:	3μ″,6μ″,15,μ″,30μ″,50μ″
Working temperature:	-40°C-70°C
Relative humidity:	70%±10% RH

Electrical Specifications at 25°C

Insertion Loss dB max	Return Loss dB min			Crosstalk(dB TYP)			Common Mode Rejection (dB TYP)		Hipot(Vrms)
1-100MHz	1-30MHz	30-60MHz	60-80MHz	1-30MHz	30-60MHz	60-80MHz	1-50MHz	50-150MHz
-1.0	-18	-16	-12	-40	-35	-30	-30	-20	1500

20121114091406505.pdf
