1.3inch Long Body PoE Gigabit RJ45 Jack with Magnetics

Product Details:

Place of Origin	Guangdong, China (Mainland)	Part Number	B50(150-85)GP8-15A-P113-F52
Brand Name	B-TOP	Type	RJ45
Application	PCB	Gender	Female
Port	1x1	LED	Green/Yellow

Detailed Product Description:

1.3inch Long Body PoE Gigabit RJ45 Jack with Magnetics – Designed for most leading PHY manufacturers with the addition of Power over Ethernet, according to IEEE 802.3af.

Features and Benefits

1. RoHS peak wave solder temperature rating 260°C
2. Single port Connector for PoE applications
3. 350µH minimum OCL with 8mA bias current
4. High performance for maximum EMI suppression
5. 15W, 350mA, 48V PoE rating

More Tab UP Magnetic RJ45 Jack

View the full list of Tab UP Magnetic RJ45 Jack Connector on the new website.

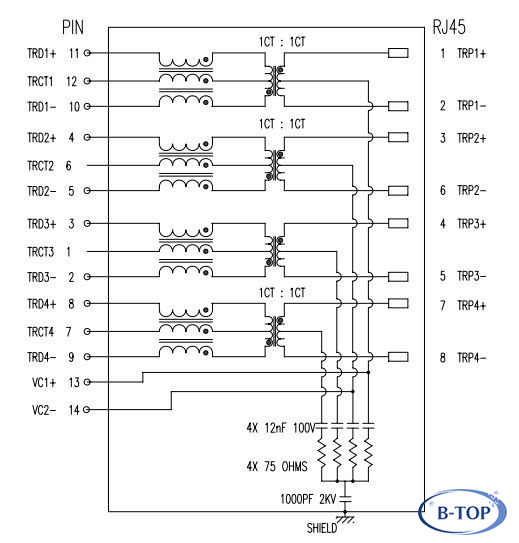

Part Number	Size	Speed	Schematic	PoE	LED	EMI  Spring	Gold  Plating
BT50S(27-11)F4-03A-P213-B52	21.35*15.9*13.5	100M	F4-03A		G/Y	No	6u"
B50S(27-12)F4-239-P123-B52	21.35*15.9*13.5	100M	F4-239		Y/G	Yes	6u"
B50S(27-16)F4-117-P223-B52	21.35*15.9*13.5	100M	F4-117		G/Y	Yes	6u"
B50S(27-19)F4-03A-P223-B52	21.35*15.9*13.5	100M	F4-03A		G/Y	Yes	6u"
B50S(27-22)F4-03A-P213-B52	21.35*15.9*13.5	100M	F4-03A		G/Y	No	6u"
B50S(28-07)G8-85-P223-B52	21.35*15.9*13.5	Gigabit	G8-85		G/Y	Yes	6u"
B50S(28-09)G8-96-P023-B52	21.35*15.9*13.5	Gigabit	G8-96		None	Yes	6u"
B50S(28-16)G8-09-P623-B52	21.35*15.9*13.5	Gigabit	G8-09		GO/Y	Yes	6u"
B50S(28-20)G8-96-P323-B52	21.35*15.9*13.5	Gigabit	G8-96		G/G	Yes	6u"
B50S(28-21)G12-95-P626-B52	21.35*15.9*13.5	Gigabit	G12-95		GY/G	Yes	50u"
B50S(28-27)G8-140-P623-B52	21.35*15.9*13.5	Gigabit	G8-140		GO/Y	Yes	6u"
B50S(28-29)G12-95-P223-B52	21.35*15.9*13.5	Gigabit	G12-95		G/Y	Yes	6u"
B50S(28-31)G8-164-P223-B52	21.35*15.9*13.5	Gigabit	G8-164		G/Y	Yes	6u"
B50S(28-39)G8-174-P623-B52	21.35*15.9*13.5	Gigabit	G8-174		G/GY	Yes	6u"
B50S(28-40)PF6-258A-P223-B52	21.35*15.9*13.5	100M	PF6-258A	PoE	G/Y	Yes	6u"
B50S(28-42)G8-98-P223-B52	21.35*15.9*13.5	Gigabit	G8-98		G/Y	Yes	6u"
B50S(28-43)G8-09-P223-B52	21.35*15.9*13.5	Gigabit	G8-09		G/Y	Yes	6u"
B50S(28-45)G8-107-P123-B52	21.35*15.9*13.5	Gigabit	G8-107		Y/G	Yes	6u"
B50S(28-48)G8-208-P623-B52	21.35*15.9*13.5	Gigabit	G8-208		GO/Y	Yes	6u"
B50(28-49)G8-10K-A623-B52	21.35*15.9*13.5	Gigabit	G8-10K		GO/Y	Yes	6u"
B50(29-01)F4-100-P213-B52	25.4*16.2*13.5	100M	F4-100		G/Y	No	6u"
B50(29-02)F5-190-P213-B52	25.4*16.2*13.5	100M	F5-190		G/Y	No	6u"
B50(29-03)F4-24-P213-B52	25.4*16.2*13.5	100M	F4-24		G/Y	No	6u"
B50(29-06)FP4-198-P613-B52	25.4*16.2*13.5	100M	FP4-198	PoE	GO/Y	No	6u"
B50(29-07)F4-24-P223-B52	25.4*16.2*13.5	100M	F4-24		G/Y	Yes	6u"
B50(29-15)F4-100C-P214-B52	25.4*16.2*13.5	100M	F4-100C		G/Y	No	15u"
B50(29-18)F4-03B-P613-B52	25.4*16.2*13.5	100M	F4-03B		GR/GR	No	6u"
B50(29-30)F4-17-P223-B52	25.4*16.2*13.5	100M	F4-17		G/Y	Yes	6u"
B50(29-33)F5-190-P213-B52	25.4*16.2*13.5	100M	F5-190		G/Y	No	6u"
B50(29-31)F4-240-P223-B52	25.4*16.2*13.5	100M	F4-240		G/Y	Yes	6u"
B50(29-35)F5-83-P213-B52	25.4*16.2*13.5	100M	F5-83		G/Y	No	6u"
B50(29-36)F4-24A-P223-B92	25.4*16.2*13.5	100M	F4-24A		G/Y	Yes	6u"
B50(29-53)F4-263-P223-B52	25.4*16.2*13.5	100M	F4-263		G/Y	Yes	6u"
B50(29-59)F4-100-P613-B92	25.4*16.2*13.5	100M	F4-100		G/GY	No	6u"
B50(29-60)F4-24-P113-B52	25.4*16.2*13.5	100M	F4-24		Y/G	No	6u"
B50(30-08)F4-262-P003-C52	25.4*16.2*13.5	100M	F4-262		None	No	6u"
B50(31-02)F4-42A-P003-B52	25.4*16.2*13.5	100M	F4-42A		None	No	6u"
B50(36-06)F5-190-P013-B52	25.4*16.2*13.5	100M	F5-190		None	No	6u"
B50(02-02)G8-87-P213-B52	25.4*16.2*13.5	Gigabit	G8-87		G/Y	No	6u"
B50(02-05)G8-27-P213-B52	25.4*16.2*13.5	Gigabit	G8-27		G/Y	No	6u"
B50(02-06)G8-86-P613-B52	25.4*16.2*13.5	Gigabit	G8-86		G/GO	No	6u"
B50(02-07)G8-93-P223-B52	25.4*16.2*13.5	Gigabit	G8-93		G/Y	Yes	6u"
B50(02-09)G8-86-P613-B52	25.4*16.2*13.5	Gigabit	G8-86		GO/Y	No	6u"
B50(02-10)G8-91-P613-B52	25.4*16.2*13.5	Gigabit	G8-91		GO/Y	No	6u"
B50(02-12)G8-102-P113-B52	25.4*16.2*13.5	Gigabit	G8-102		G/Y	No	6u"
B50(02-13)G8-09-P213-B52	25.4*16.2*13.5	Gigabit	G8-09		G/Y	No	6u"
B50(02-15)G8-09-P203-B52	25.4*16.2*13.5	Gigabit	G8-09		G/Y	No	6u"
B50(02-19)G8-91-P123-B52	25.4*16.2*13.5	Gigabit	G8-91		Y/G	Yes	6u"
B50(02-22)G8-91-P624-B52	25.4*16.2*13.5	Gigabit	G8-91		GO/Y	No	15u"
B50(02-23)G8-120-P223-B12	25.4*16.2*13.5	Gigabit	G8-120		G/Y	Yes	6u"
B50(02-26)G8-140-P623-B52	25.4*16.2*13.5	Gigabit	G8-140		GO/Y	Yes	6u"
B50(02-28)G8-140-P023-B52	25.4*16.2*13.5	Gigabit	G8-140		None	Yes	6u"
B50(02-29)G8-98-P223-B52	25.4*16.2*13.5	Gigabit	G8-98		G/Y	Yes	6u"
B50(02-30)G8-140-P623-B52	25.4*16.2*13.5	Gigabit	G8-140		GO/Y	Yes	6u"
B50(02-33)G8-197-P613-B92	25.4*16.2*13.5	Gigabit	G8-197		G	No	6u"
B50(02-36)G8-91-P623-B52	25.4*16.2*13.5	Gigabit	G8-91		GO/Y	Yes	6u"
B50(02-37)G8-212-P625-B52	25.4*16.2*13.5	Gigabit	G8-212		GO/Y	Yes	30u"
B50(150-07)GP8-15-P623-F52	32.6*16.6*13.5	Gigabit	GP8-15	PoE	GO/Y	Yes	6u"
B50(150-22)G8-12-P323-F52	32.6*16.6*13.5	Gigabit	G8-12		G/G	Yes	6u"
B50(150-53)GP12-106-P623-F12	32.6*16.6*13.5	Gigabit	GP12-106	PoE	GO/Y	Yes	6u"
B50(150-57)G8-13-P623-F52	32.6*16.6*13.5	Gigabit	G8-13		GY/G	Yes	6u"
B50(150-58)GP8-15-P623-F12	32.6*16.6*13.5	Gigabit	GP8-15	PoE	GY/G	Yes	6u"
B50(150-60)G8-12-P623-F12	32.6*16.6*13.5	Gigabit	G8-12		GY/G	Yes	6u"
B50(150-68)GP8-15C-P023-F52	32.6*16.6*13.5	Gigabit	GP8-15C	PoE+	None	Yes	6u"
B50(150-72)G8-13-P323-F52	32.6*16.6*13.5	Gigabit	G8-13		G/G	Yes	6u"
B50(150-73)G8-12-P623-F52	32.6*16.6*13.5	Gigabit	G8-12		GO/Y	Yes	6u"
B50(150-85)GP8-15A-P113-F52	32.6*16.6*13.5	Gigabit	GP8-15A	PoE+	Y/G	No	6u"
B50(150-86)GP8-15A-P123-F52	32.6*16.6*13.5	Gigabit	GP8-15A	PoE+	Y/G	Yes	6u"
B50(150-88)GP8-15-P623-F52	32.6*16.6*13.5	Gigabit	GP8-15	PoE	GY/GY	Yes	6u"
B50(150-90)GP8-218-P023-B52	32.6*16.6*13.5	Gigabit	GP8-218	PoE	None	Yes	6u"
B50(151-01)F4-27-P622-F12	32.6*16.6*13.5	100M	F4-27		GY/Y	Yes	6u"
B50(151-02)FP4-150-P622-F12	32.6*16.6*13.5	100M	FP4-150	PoE	G/GO	Yes	6u"
B50(151-03)FP4-150-P623-F12	32.6*16.6*13.5	100M	FP4-150	PoE	GO/GO	Yes	6u"
B50(151-06)F4-243-P223-F52	32.6*16.6*13.5	100M	F4-243		G/Y	Yes	6u"
B50(152-02)F4-27-P023-F52	32.6*16.6*13.5	100M	F4-27		None	Yes	6u"

Spectifications

Electrical		Mechanical
Current rating:	1 - 1.5A	Insertion force:	2 contacts---350g
Voltage rating:	120 - 150V AC		4 contacts---500g
Insulation resistance:	500MΩ Min		6 contacts---750g
Withstand voltage:	1500V RMS 50Hz or 60Hz 1 Min		8 contacts---900g
Contact resistance:	20mΩ Max		10 contacts---1050g
PoE rating:	15W, 350mA, 84V (For PoE product only)	Retention strength:	7.7Kg between jack and plug
		Durability:	750 mating cycles min
Material
Housing:	1) glass filled PA66(ul 94v-0)
	2) glass filled PA46/LCP(ul 94v-0)
	3) glass filled PBT(ul 94v-0)
Spring wire:	1) 0.45mm dia phosphor bronze gold plating over nickel
	2) 0.35mm thickness phosphor bronze alloy
	selective gold plating over nickel
Shielding:	0.2mm thickness copper alloy with tin plated
Gold plating:	3μ″,6μ″,15,μ″,30μ″,50μ″
Working temperature:	-20°C-70°C, -40°C-85°C
Relative humidity:	70%±10% RH

Electrical Specifications at 25°C

Insertion Loss dB max	Return Loss dB min			Crosstalk(dB TYP)			Common Mode Rejection (dB TYP)		Hipot(Vrms)
1-100MHz	1-30MHz	30-60MHz	60-80MHz	1-30MHz	30-60MHz	60-80MHz	1-50MHz	50-150MHz
-1.0	-18	-16	-12	-40	-35	-30	-30	-20	1500
